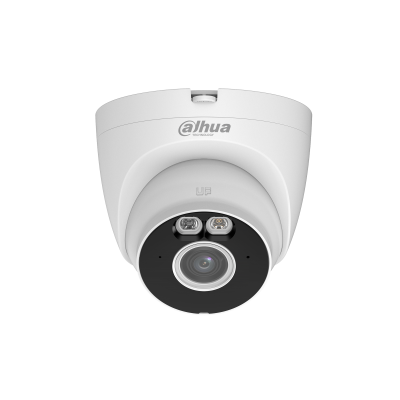

Dahua 5MP Turret (Tavan Tipi) Wi-Fi İç Ortam Güvenlik Kamerası

1/2.7" CMOS

2880 (H) × 1620 (V)

0.007 lux@F1.6 (Color, 30 IRE)

0.0007 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

1 (IR LED); 1 (Warm light)

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

2.8 mm;3.6 mm

F1.6

2.8 mm: H: 108°; V: 57°; D: 129°
3.6 mm: H: 89°; V: 48°; D: 104°

Vehicle Detection

H.264B; H.264; H.264H; H.265

Main stream: 2880 × 1620@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

H.264: 32 kbps–4096 kbps

H.265: 32 kbps -4096 kbps

WDR

DWDR

0°/180°

G.711a; G.711Mu; PCM

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm

ONVIF (Profile S & Profile G & Profile T); CGI

Smart PSS Lite; DSS; DMSS

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

12 VDC

Basic: 2.1 W (12 VDC);

Max.: 5.1 W (12 VDC) (H.265 + warm light on)

IP67

Reset button

Metal + plastic

102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
