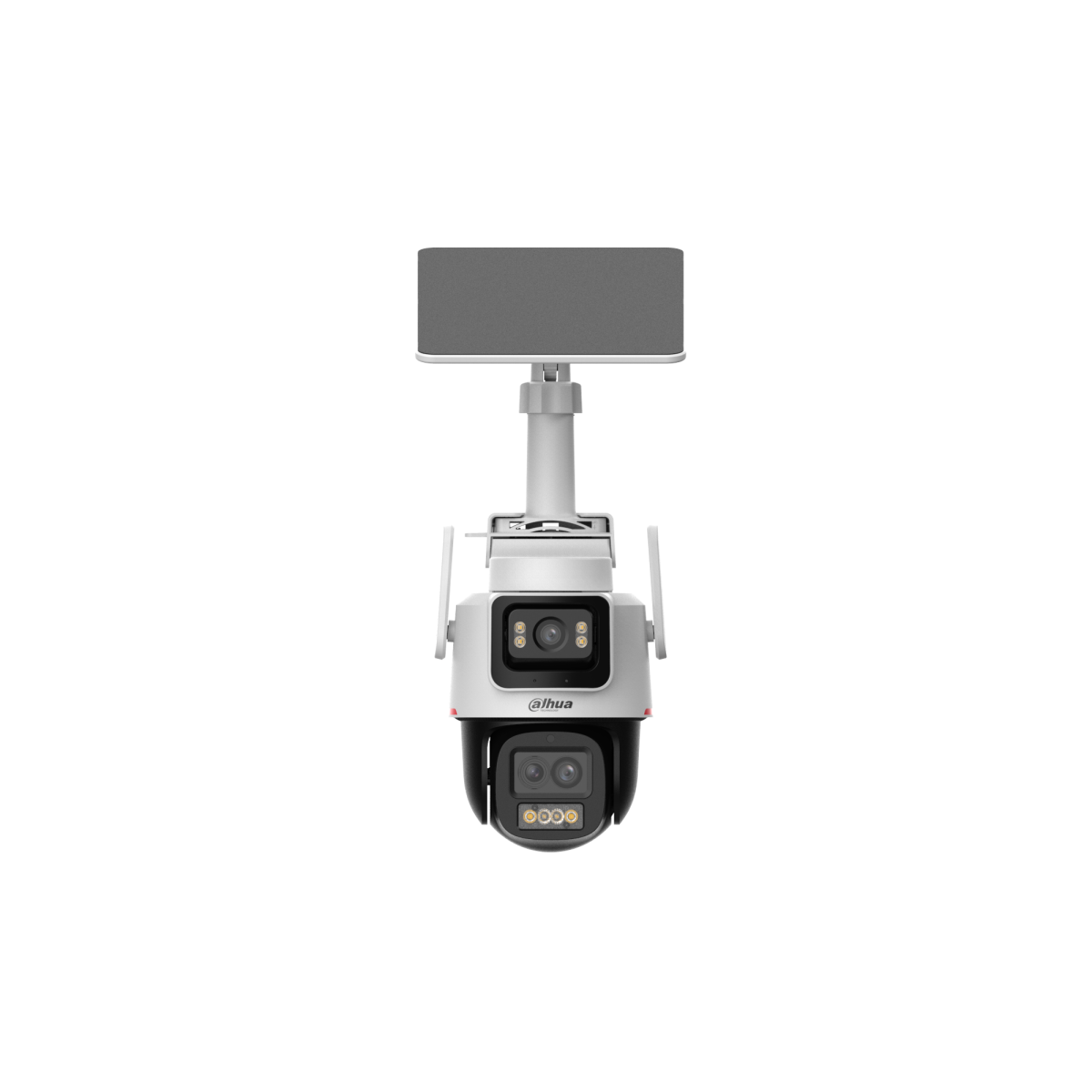

Dahua 3MP Dönen Başlıklı (Pan & Tilt) Pilli/Güneş Panelli 4G SIM Kartlı Güvenlik Kamerası

Fixed Lens: 1/2.8" CMOS
PT Lens: 1/2.8" CMOS

Fixed Lens: 3 MP
PT Lens: 3 MP

Fixed Lens: 2304 (H) × 1296 (V)
PT Lens: 2304 (H) × 1296 (V)

ROM

256 MB

RAM

256 MB

Fixed Lens:
0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)
PT Lens:
0.0005 lux@F1.0(Color, 30 IRE);
0 lux (Illuminator on)

Fixed Lens: 30 m (98.43 ft) (Warm light)
PT Lens: 50 m (164.04 ft) (Warm light)

Fixed Lens: Manual; Auto; Off
PT Lens: Manual; Auto; Off

Fixed Lens: 4 (Warm light)
PT Lens: 4 (Warm light)

Lens

Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm

Fixed Lens: F1.0
PT Lens: 3.6 mm: F1.0; 8.4 mm: F1.0

Fixed Lens:
H: 93.5°; V: 51.9°; D: 110.1°
PT Lens:
3.6 mm: H: 81.5°; V: 44.3°; D: 96.3°
8.4 mm: H: 15.1°; V: 8.4°; D: 17.8°

Fixed Lens: 1.1 m (3.61 ft)
PT Lens: 3.6 mm: 1.7 m (5.58 ft); 8.4 mm: 6 m (19.69 ft)

Lens

40 m

(131.23 ft)

15.8 m

(51.84 ft)

8 m

(26.25 ft)

4 m

(13.12 ft)

3.6 mm

51.43 m

(168.73 ft)

20.31 m

(66.65 ft)

10.29 m

(33.75 ft)

5.14 m

(16.87 ft)

8.4 mm

120 m

(393.7 ft)

47.4 m

(155.51 ft)

24 m

(78.74 ft)

12 m

(39.37 ft)

PTZ

Pan/Tilt Range

Fixed Lens: Pan: 0° to 210°; Tilt: -7° to +20° (manual)
PT Lens: Pan: 0° to 350°; Tilt: 0° to +90° (Electric)

Manual Control Speed

Pan: 40°/s; Tilt: 40°/s

Preset Speed

Pan: 40°/s; Tilt: 40°/s

50

Tour

8 (up to 32 presets per tour)

Vehicle Detection

Smart Tracking

Auto tracking lite
Linkage tracking

SMD

SMD 3.0

Active Deterrence

Light Warning

White light warning

Sound Warning

Offers 3 sound alarm.
Sound can be set from 1-100.
Play times can be set from 1-10.

Video

Smart H.265+

1 stream

Fixed Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360)
PT Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360)

Fixed lens:Main stream: 3M/1080p/720p/640 × 360@(15 fps)
PT lens:Main stream: 3M/1080p/720p/640 × 360@(15 fps)

VBR

H265: 54 kbps–1280 kbps

WDR

Fixed Lens: DWDR
PT Lens: DWDR

3D NR

180°

≥55 dB

Carrier Network System

4G

EAU/EUR:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
LA:
LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B38/B40/B41

Max. Transmission Power

4G: Power class3: 23 dBm ± 2.7 dB

Micro SD card (512 GB)

DMSS

CE: EN 55032/EN 55035/EN 50130-4/EN 61000-3/EN 62368-1/EN 301489

Port

1 channel (built-in mic)

1 channel (built-in speaker)

warning light; audio

Motion detection; human detection; vehicle detection

Power supply:
Built in 65Wh lithium battery
Comes with 8 W solar panel
Charging:
USB Type-C (Supports QC2.0)

Battery Capacity

65 Wh

≤95%

IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection

223.2 mm × 130.0 mm × 215.0 mm (8.79" × 5.12" × 8.46") (L × W × H)

1.8 kg (3.97 lb)

Filter

Remarks

The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
