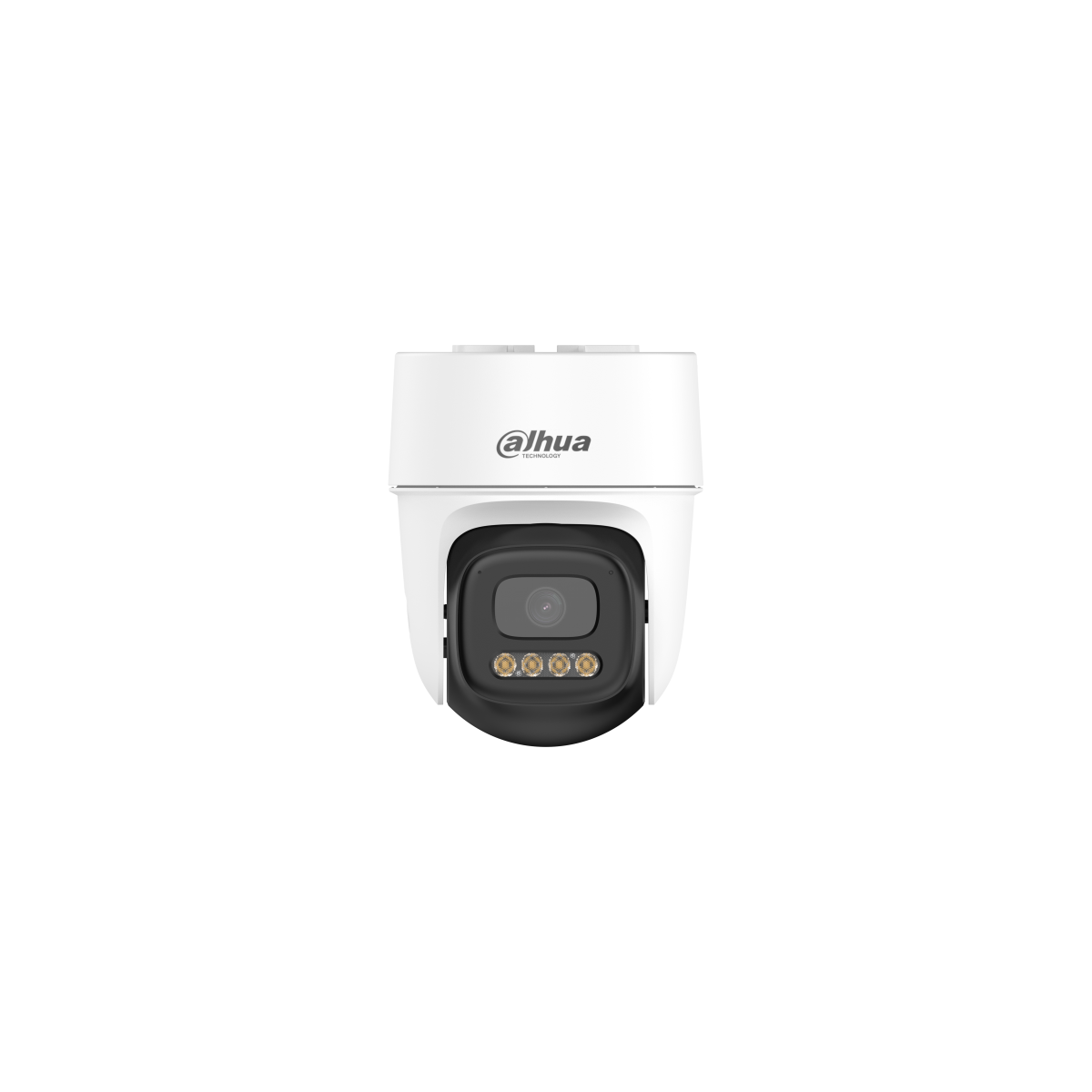

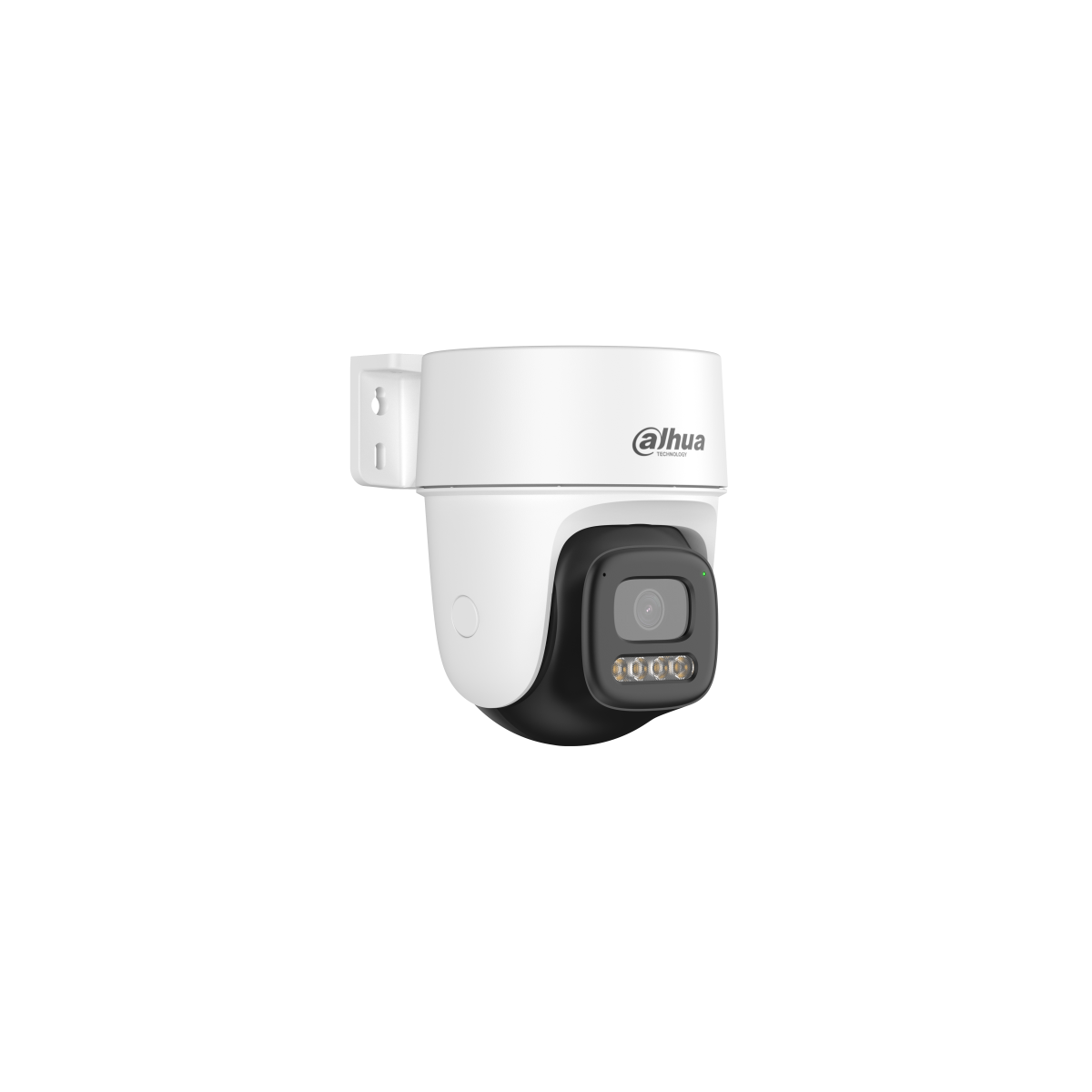

Dahua 3MP Dönen Başlıklı (Pan & Tilt) Wi-Fi Dış Ortam Güvenlik Kamerası

1/3.2" CMOS

2304 (H) × 1296 (V)

Up to 30 m (98.43 ft) (Warm light)
Up to 30 m (98.43 ft) (IR)

2 (IR LED); 2 (Warm light)

Pan: 0°–350°
Tilt: 0°–90°

2.8 mm;3.6 mm

F2.0

2.8 mm: H: 87°; V: 49°; D: 101°
3.6 mm: H: 68°; V: 38°; D: 79°

Vehicle Detection

H.265

Main stream: 2304 × 1296@(1–15 fps)
sub stream: 640 × 360@(1–15 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Color/B/W

WDR

DWDR

OFF/ON (4 areas, rectangular)

0°/180°

G.711a; G.711Mu; PCM; G.726

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.4 G, EIRP≤20 dBm@2400–2483.5 MHz (CE)

Smart PSS Lite; DMSS

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

12 VDC (±30%)

Basic: 1.7 W (12 VDC);
Max.: 11.1 W (12 VDC) (warm light intensity + sound and light alarm)

–30 °C to +50 °C (–22 °F to +122 °F)

IP66

135.5 mm × 105 mm × 133.8 mm (5.33" × 4.13" × 5.27") (L × W × H)

336 g (0.74 lb)
