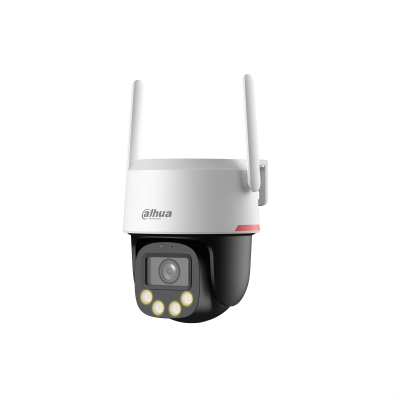

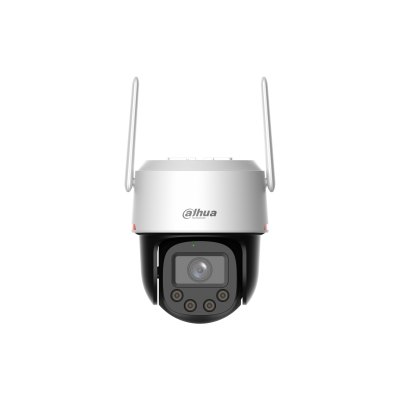

Dahua 8MP Dönen Başlıklı (Pan & Tilt) Wi-Fi Dış Ortam Güvenlik Kamerası

1/1.8" CMOS

3840 (H) × 2160 (V)

1 s–1/100,000 s

0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)

30 m (98.43 ft) (Warm light)

4 (Warm light)

Lens

3.6 mm

F1.0

H: 82.9°; V: 47.3°; D: 93.4°

PTZ

Pan/Tilt Range

Pan: 0° to 345°; Tilt: 0° to 90°

Vehicle Detection

Video

Smart H.265+; H.264M; H.264H; Smart H.264+; H.265; H.264B; MJPEG(Sub Stream 1)

Main stream: 8M/3M/720p@(1–15 fps)
Sub stream 1: 640 × 360/QVGA@(1–15 fps)

Color/B/W

WDR

120 dB

180°

PCM, G.711A, G.711Mu

RJ-45 (10/100 Base-T)

IEEE802.11g;IEEE802.11b; IEEE802.11n; IEEE802.11ax

2.4 GHz

Wi-Fi Transmission Rate

229 Mbps

Max. Transmission Power

≤20 dBm@2,400–2,483.5 MHz

ONVIF (Profile S & Profile G & Profile T); SDK; CGI

Micro SD card (Up to 512 GB); FTP

NVR;DMSS

CE

12 VDC, 1 A ± 10%

Basic: 3 W
Max. (Basic power consumption + WDR + Light on + PTZ operation): 9 W

–30 °C to +55 °C (–22 °F to +131 °F)

≤95%

IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection

153.5 mm × Φ129.3 mm (6.04" × Φ5.09")

0.60 kg (1.32 lb)
