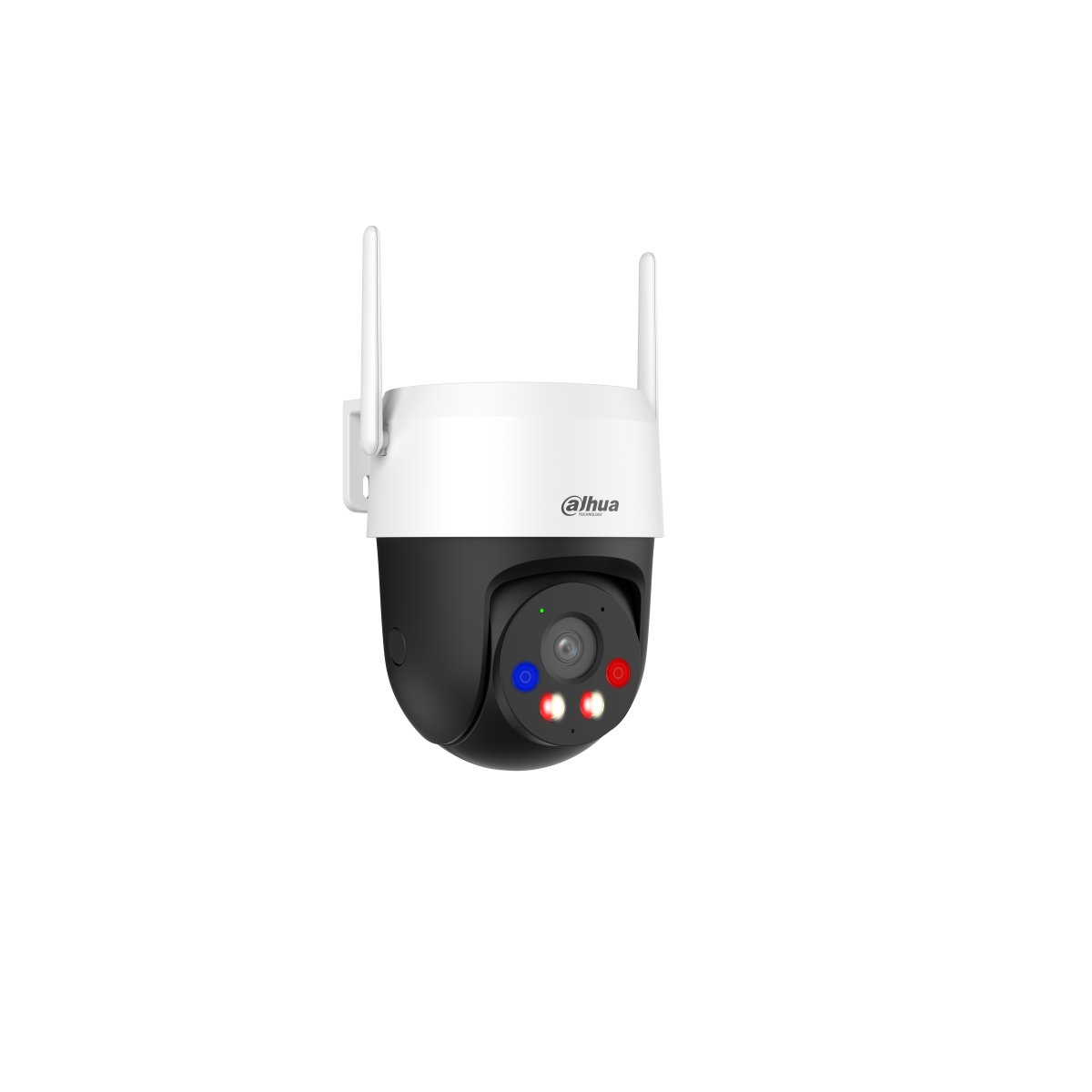

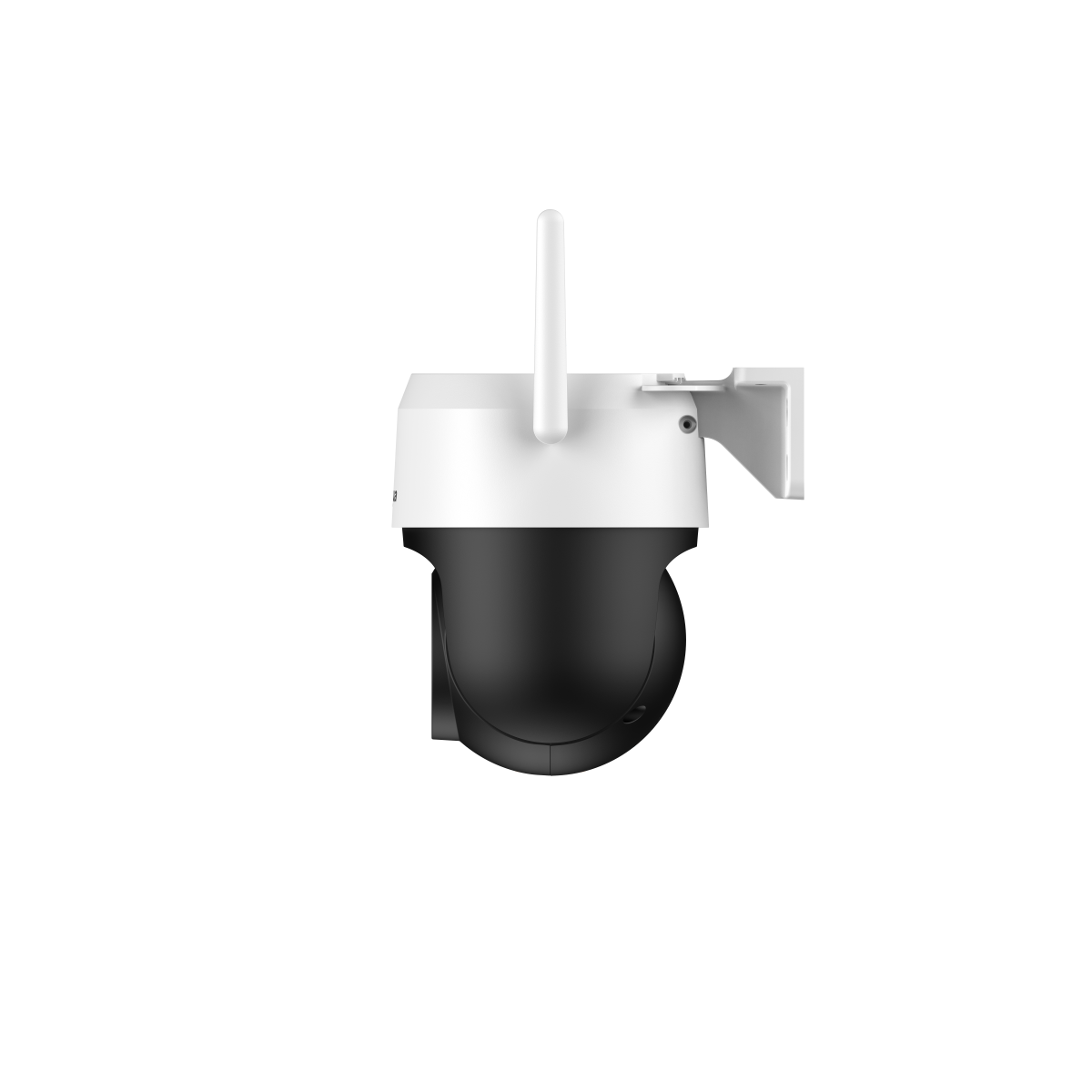

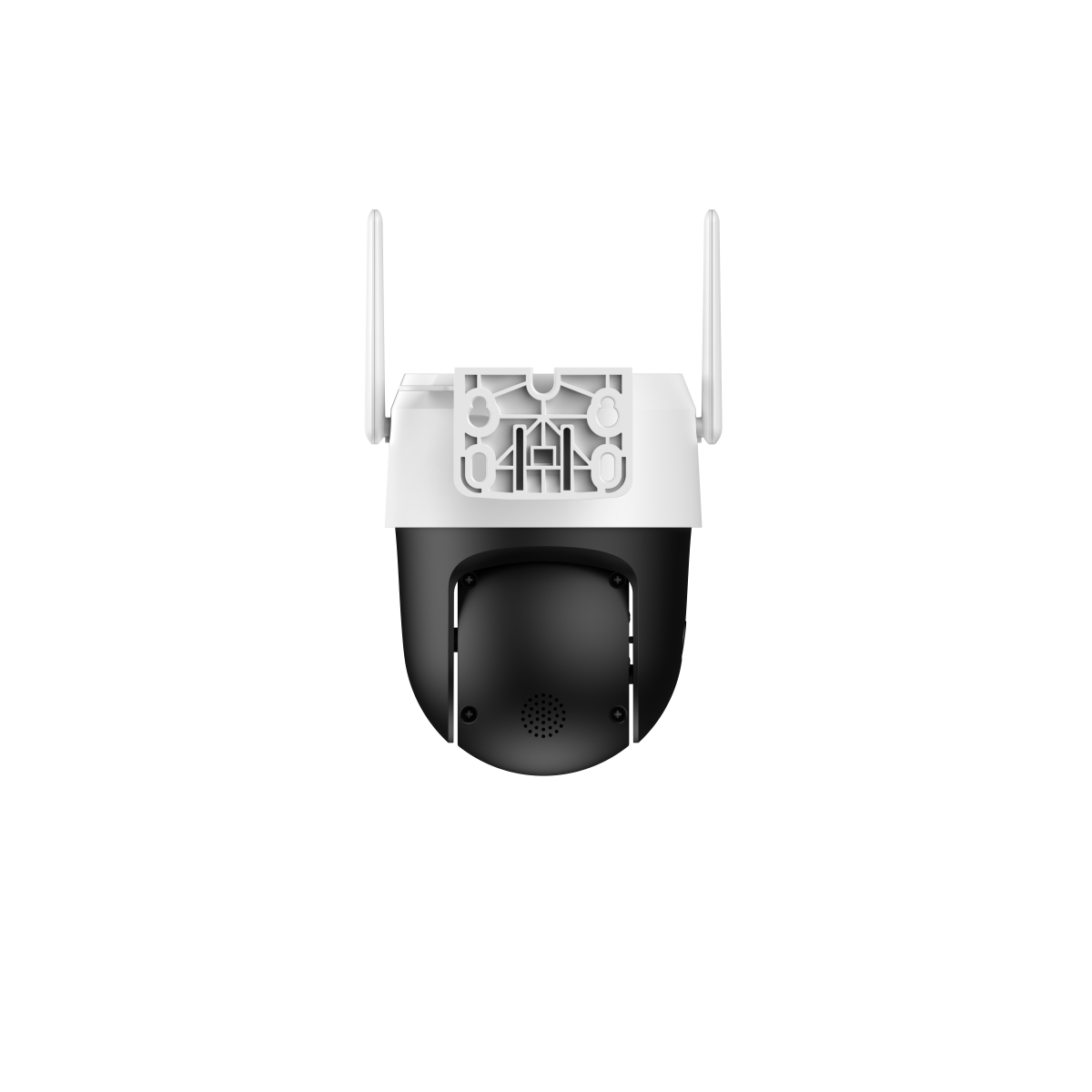

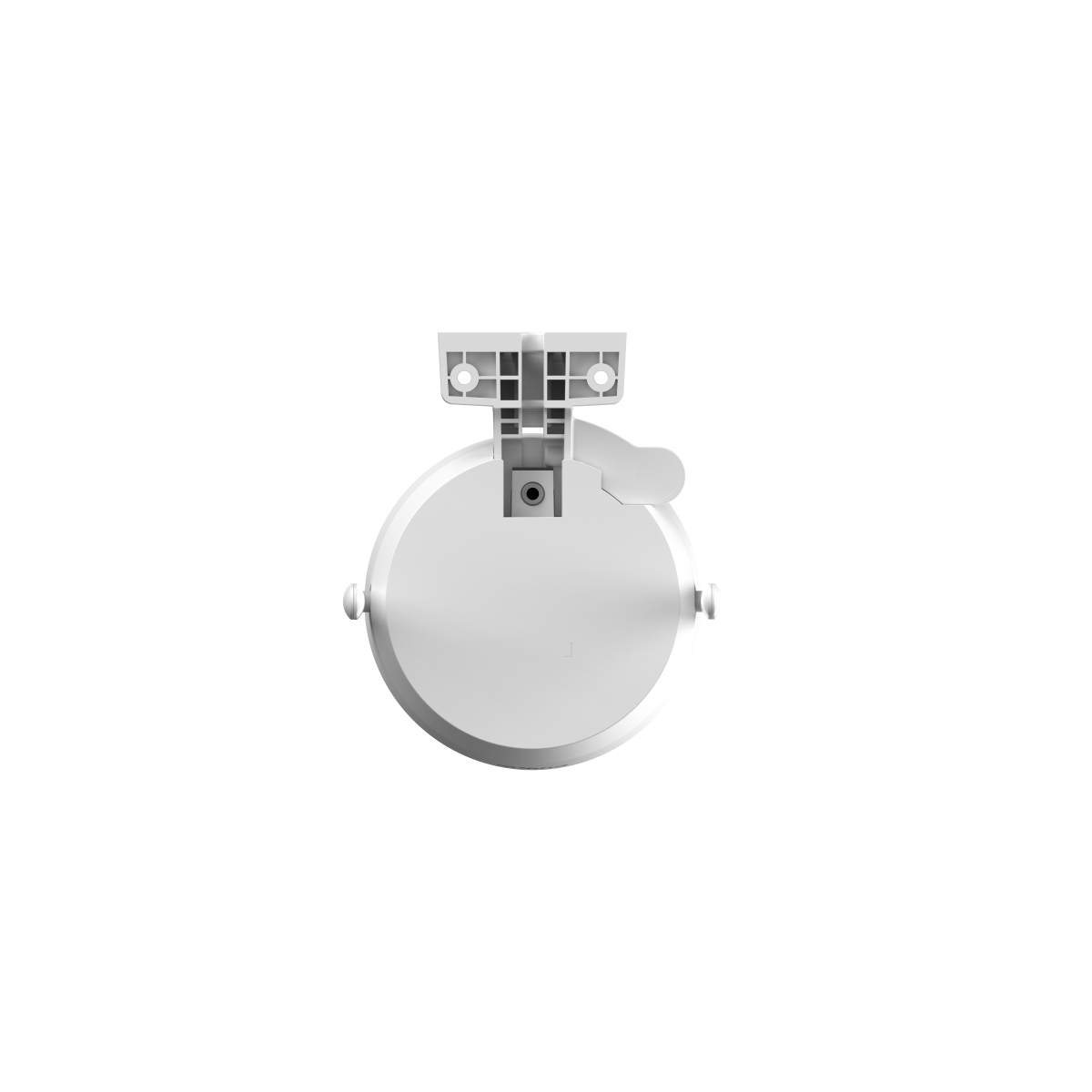

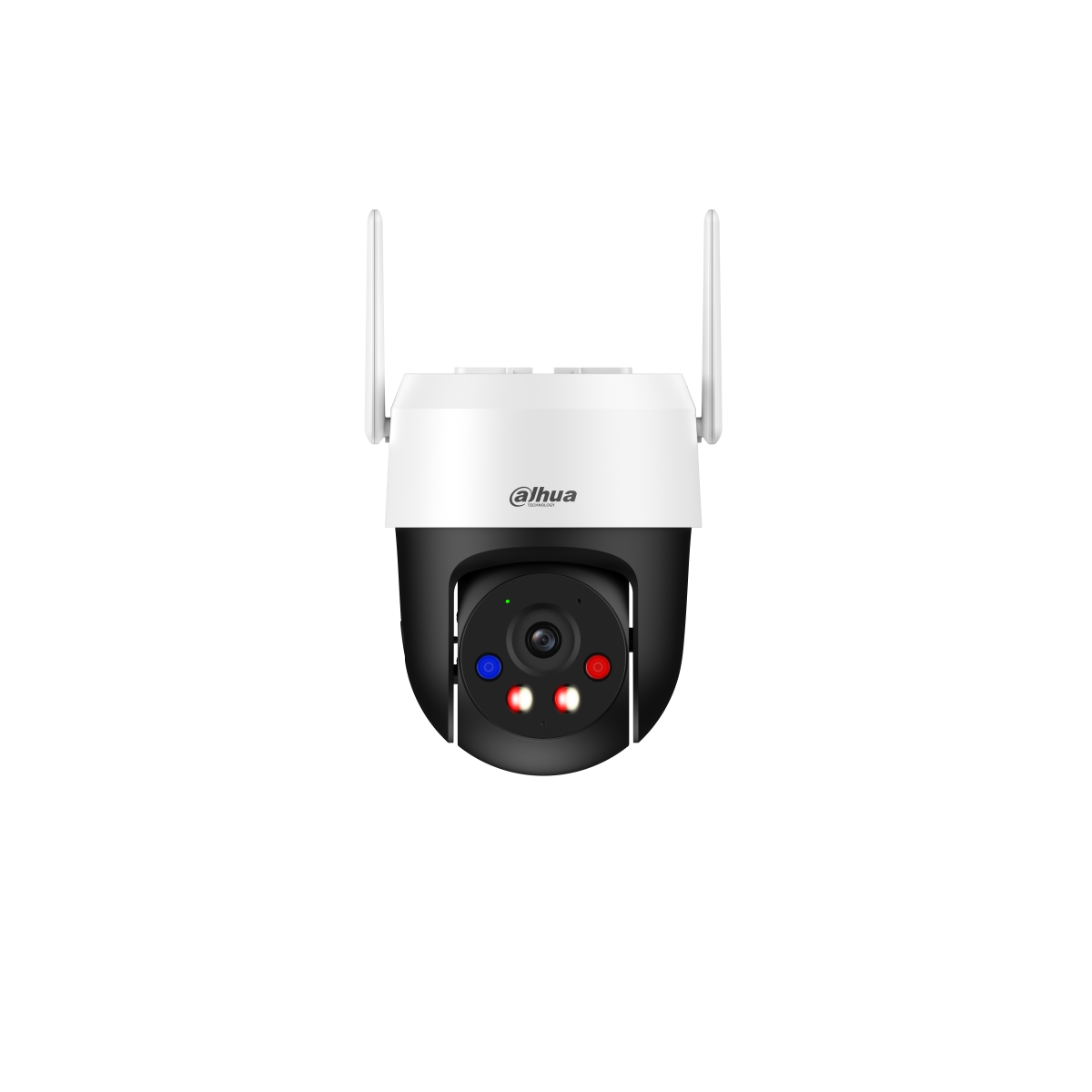

Dahua 5MP Dönen Başlıklı (Pan & Tilt) Wi-Fi Dış Ortam Güvenlik Kamerası

1/2.7" CMOS

2880 (H) × 1620 (V)

0.007 lux@F1.6 (Color, 30 IRE)

0.0007 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

2 (Multi-core (IR + warm) light)

Pan: 0° to 345°
Tilt: 0° to 90°
Rotation: 0° to 345°

4.0 mm

F1.6

H: 78°; V: 42°; D: 92°

Vehicle Detection

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Main stream: 2880 × 1620@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

H.264: 32 kbps–6144 kbps;
H.265: 32 kbps–6144 kbps

WDR

DWDR

OFF/ON (4 areas, rectangular)

0°/180°

G.711a; G.711Mu; PCM

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE)

ONVIF (Profile S & Profile G & Profile T); CGI

Smart PSS Lite; DSS; DMSS

CE

12 VDC (±30%)

Basic: 2 W (12 VDC)
Max.: 14 W (12 VDC) (illuminator intemsity + red and blue active deterrence + speaker on + PT rotation + Wi-Fi pulling stream + WDR)

–30 °C to +55 °C (–22 °F to +122 °F)

IP66

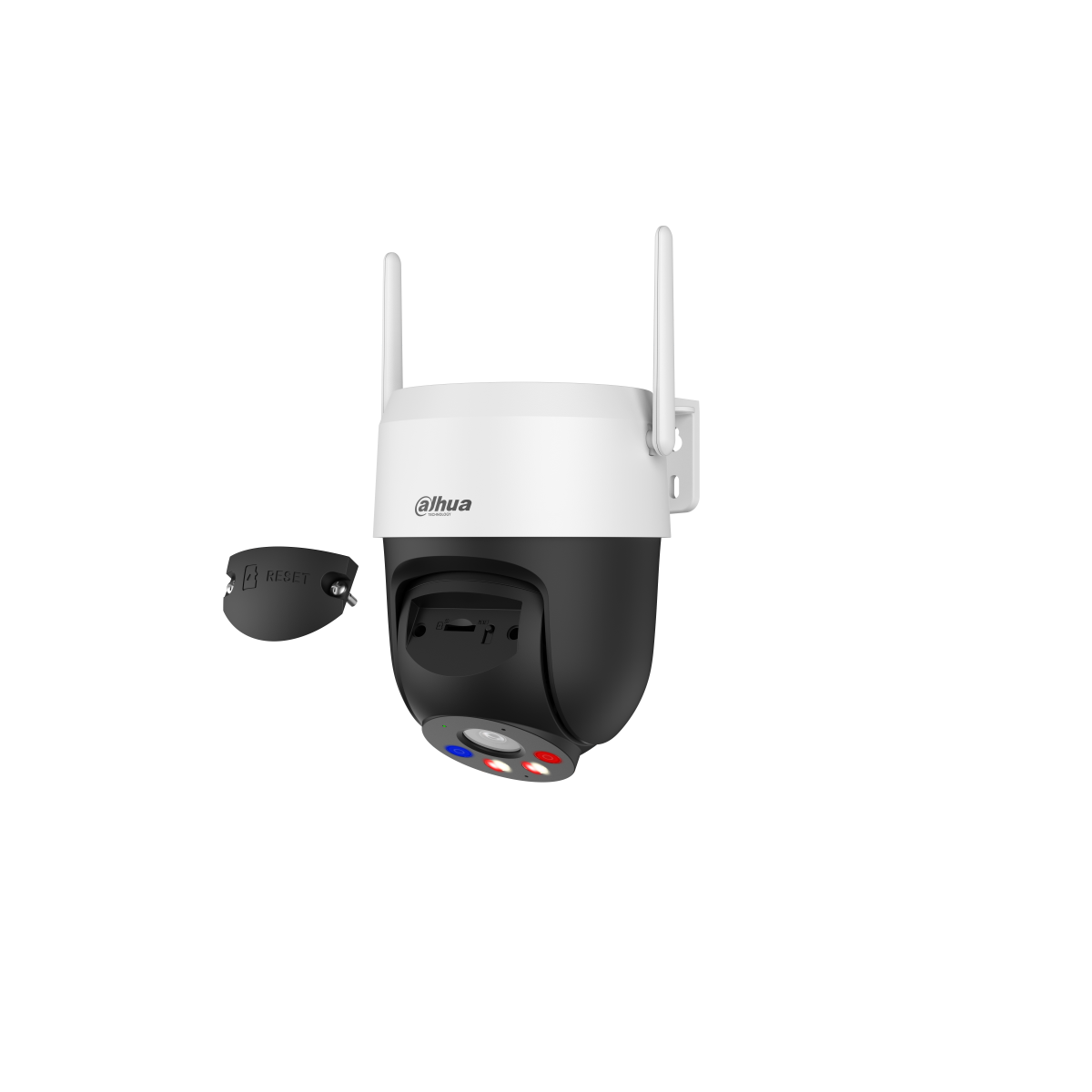

Reset button

125.4 mm × 110 mm × 140.3 mm (4.94" × 4.37" × 5.52") (L × W × H)
