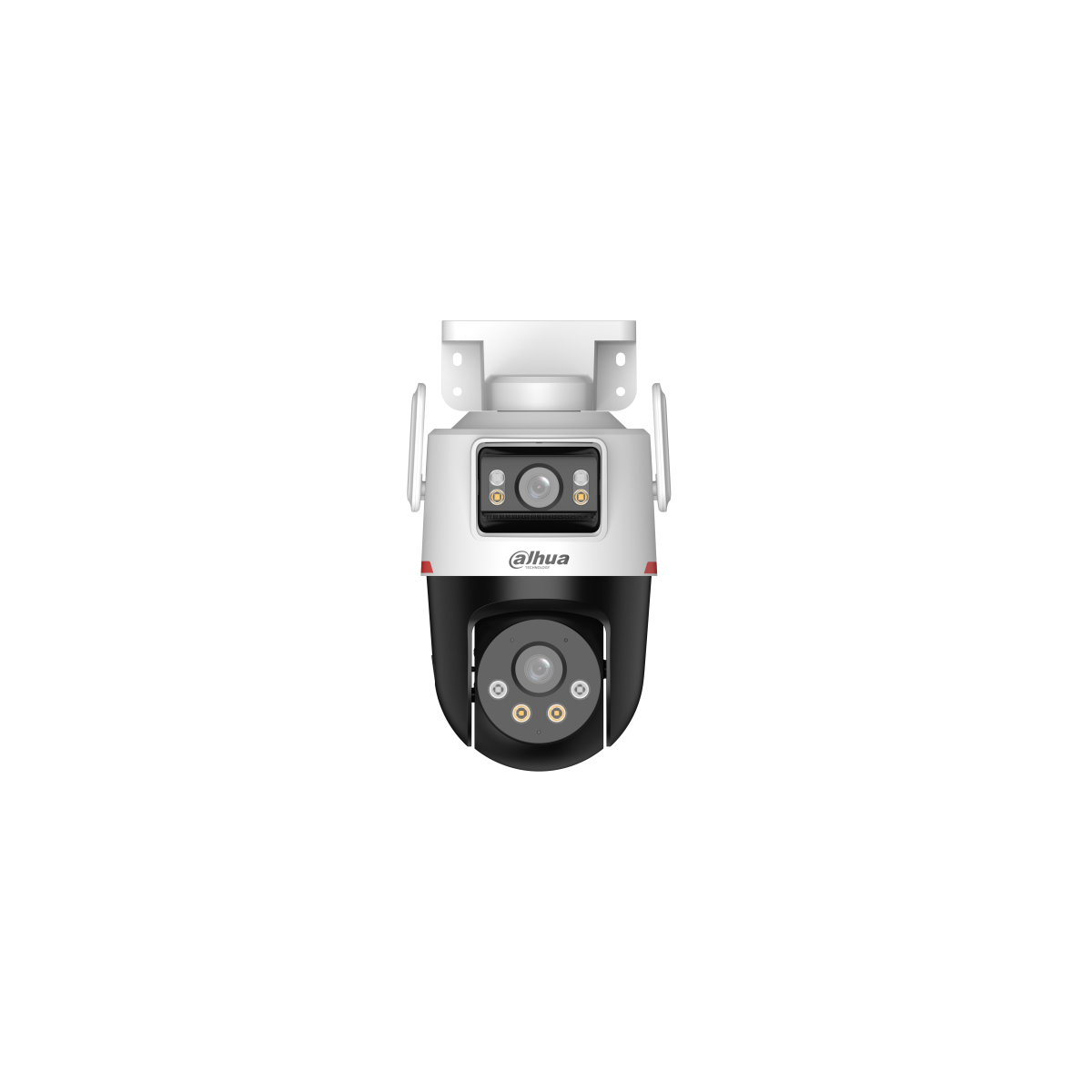

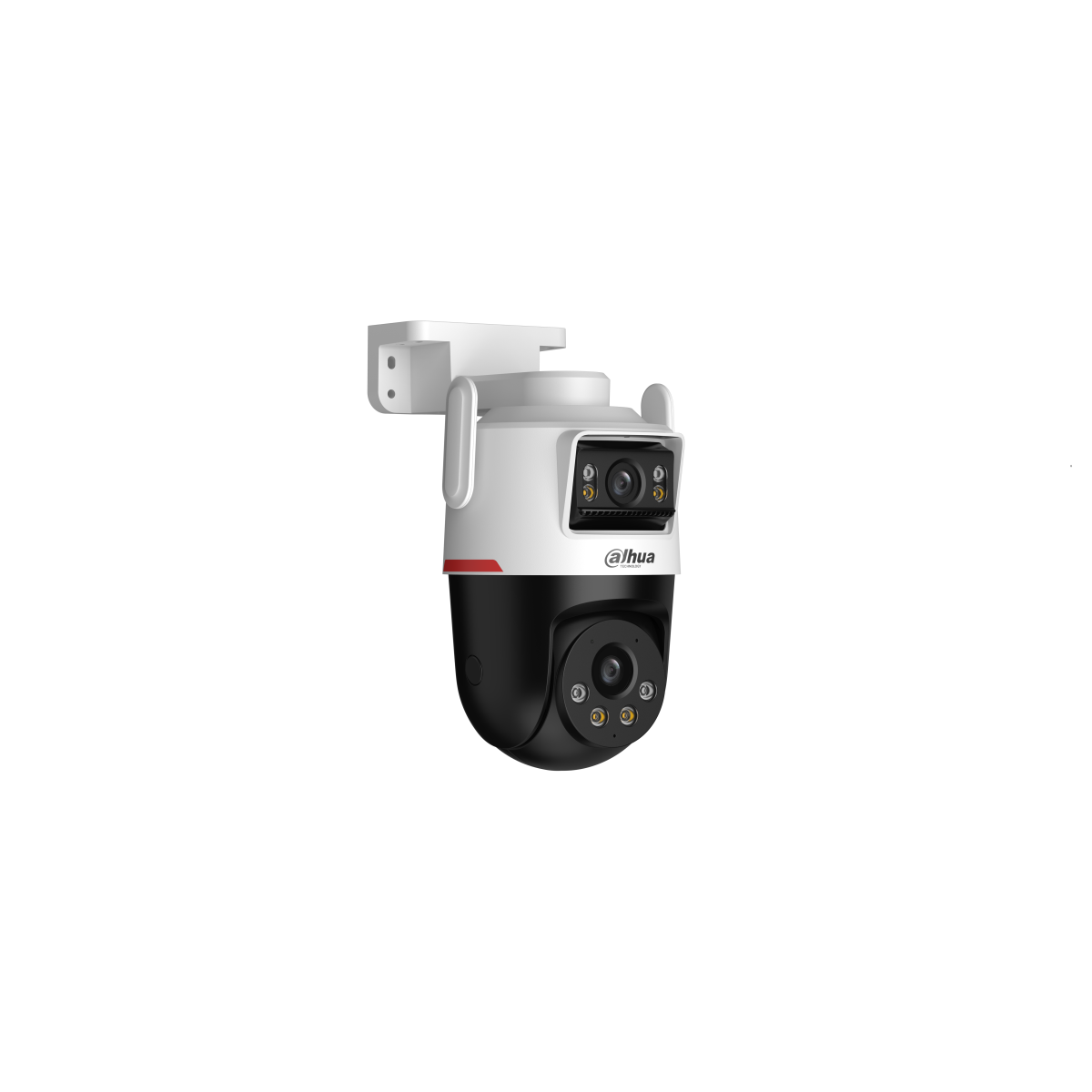

Dahua 3MP Çift Lensli Dönen Başlıklı (Pan & Tilt) Wi-Fi Dış Ortam Güvenlik Kamerası

Channel 1 (PT Lens): 1/2.9" CMOS
Channel 2 (Fixed Lens): 1/2.9" CMOS

Channel 1-2: 2304 (H) × 1296 (V)

Up to 30 m (98.43 f) (Warm light)

4 (Warm light)

Pan: 0° to 352°
Tilt: 0° to 90°

Channel 1 (PT Lens): 3.6mm
Channel 2 (Fixed Lens): 3.6mm

F1.0

Channel 1 (PT Lens): H: 81°; V: 44°; D: 95°

Channel 2 (Fixed Lens): H: 81°; V: 44°; D: 95°

Vehicle Detection

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Main stream: 2304 × 1296@(1–20 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Color/B/W

WDR

120 dB

OFF/ON (4 areas, rectangular)

0°/180°

G.711a; G.711Mu; PCM; G.726

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.4 G, EIRP≤20 dBm@2400-2483.5 MHz (CE)

Smart PSS Lite; DSS; DMSS

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

12 VDC (±30%); PoE (802.3af)

Basic: 2.3 W (12 VDC); 3.1 W (PoE);
Max.: 9.8 W (12 VDC); 11.1W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on)

–30 °C to +50 °C (–22 °F to +122 °F)

≤95%

IP66

Reset button

159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H)

585 g (1.29 lb)
