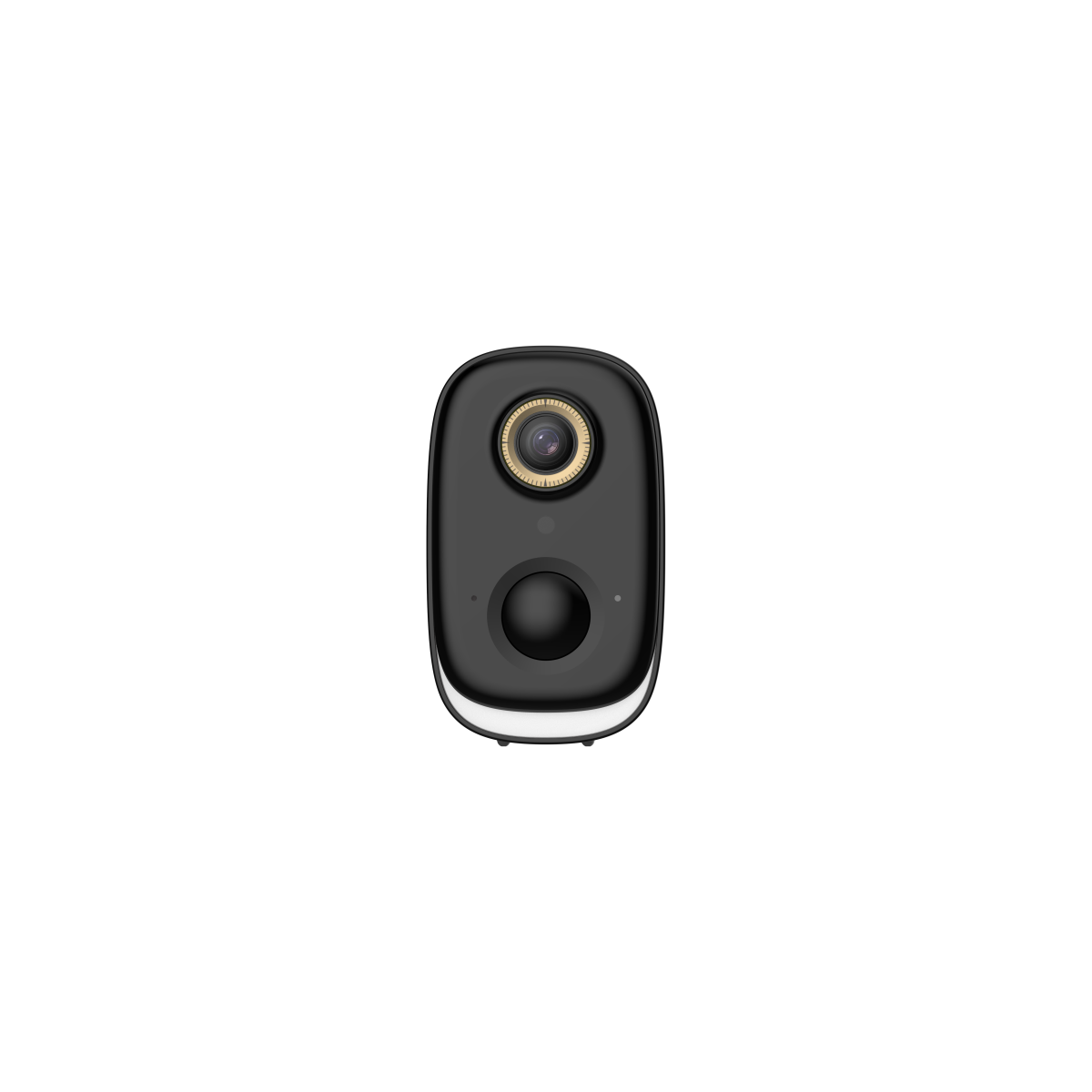

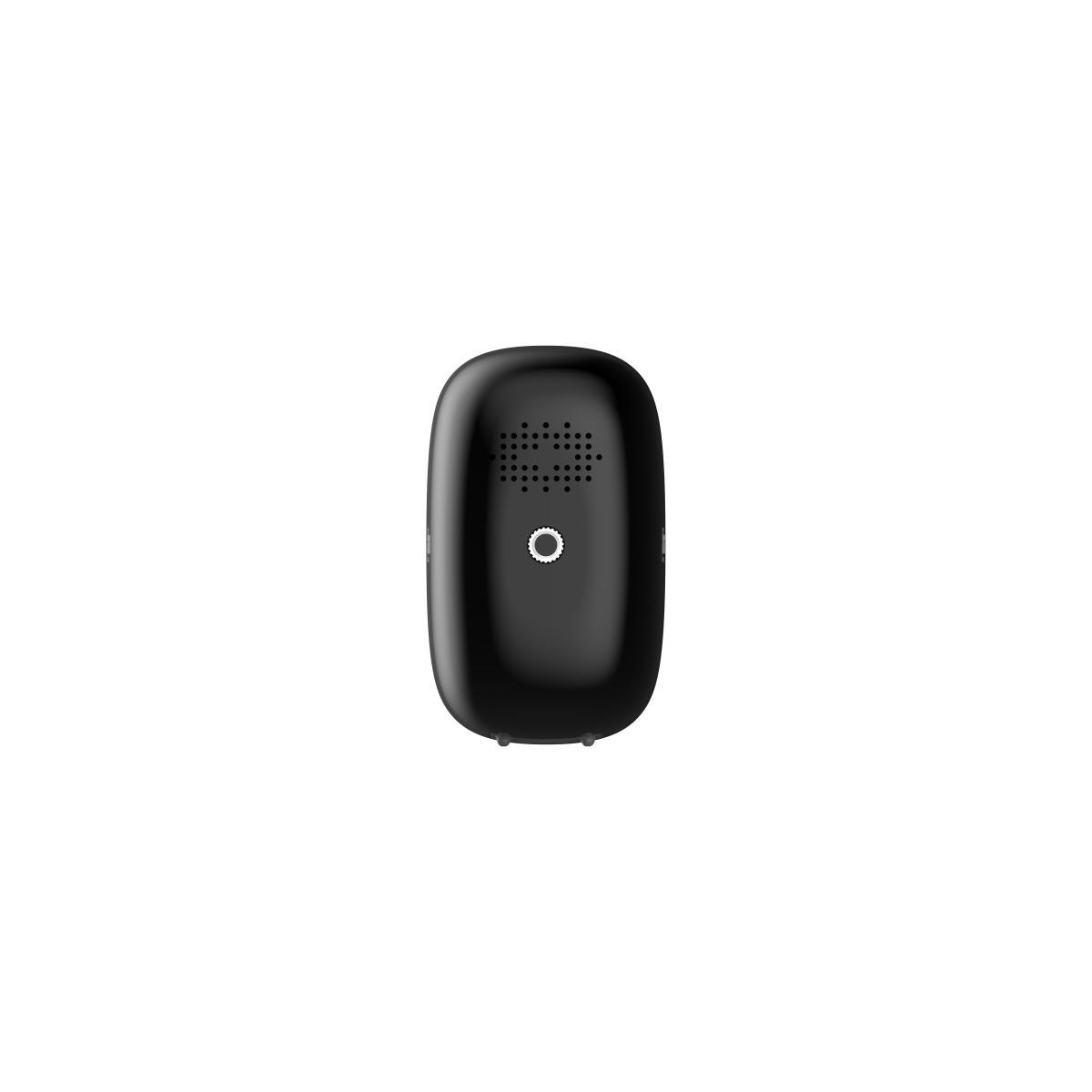

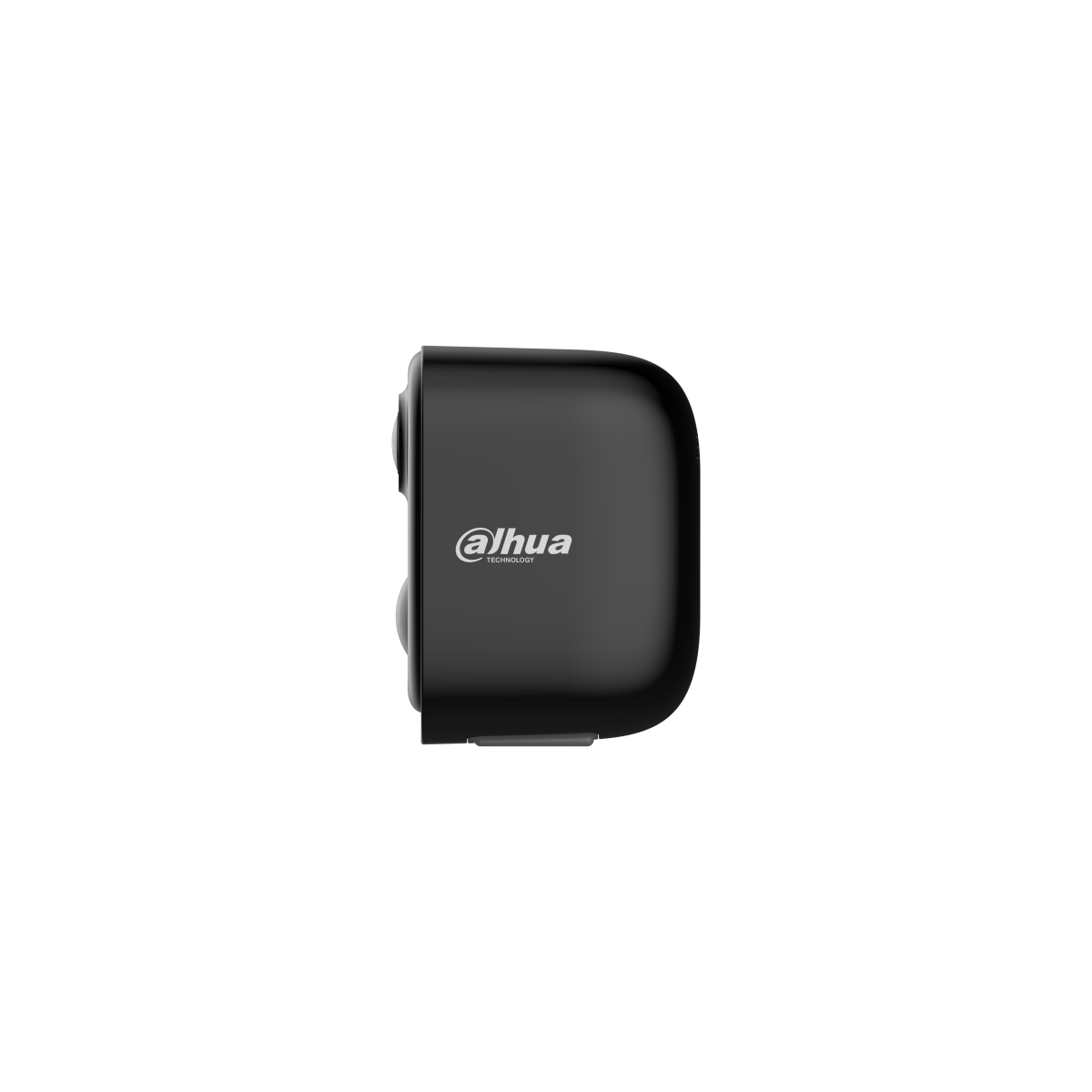

Dahua Pilli/Güneş Panelli Wi-Fi Dış Ortam Güvenlik Kamerası

1/3" CMOS

2880 (H) × 1620 (V)

Up to 15 m (49.21 ft) (IR)
Up to 10 m (32.81 ft) (Warm light)

2 (Multi-core (IR + warm) light)

Pan: 0° to 360°
Tilt: –60° to 0°
Rotation: 0° to 360°

PIR Sensor Distance

12 m (the height of device is 2.5 m, placed horizontally);
8 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)

2.1 mm

F1.6

H: 122.5°; V: 66°; D: 144.5°

Vehicle Detection

H.265

Main stream: 2880 × 1620@(1–15 fps)
Sub stream: 640 × 360@(1–15 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

WDR

OFF/ON (4 areas, rectangular)

G.711a; G.711Mu; PCM

Wi-Fi

IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400-2483.5MHz (CE), EIRP≤23 dBm@5150-5250 MHz (CE), EIRP≤20 dBm@5250-5350 MHz (CE), EIRP≤27 dBm@5470-5725 MHz (CE), EIRP≤14 dBm@5725-5875 MHz (CE)

Micro SD card (support max. 512 GB)

DMSS

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

USB (5 VDC±5%, 2 A)

Ultra power saving mode: 0.0082 W

Power saving mode: 0.0082W

AOV mode: 0.1566 W

Performance mode: 1.0315 W

–20 °C to +50 °C (–4 °F to +122 °F)

IP66

Reset Button; Power Button

90.4 mm × 69.6 mm× 54.0 mm (3.56" × 2.74"× 2.52")

0.3 kg (0.66 lb)

Battery

Battery Capacity

5600 mAh / 20.44 Wh
