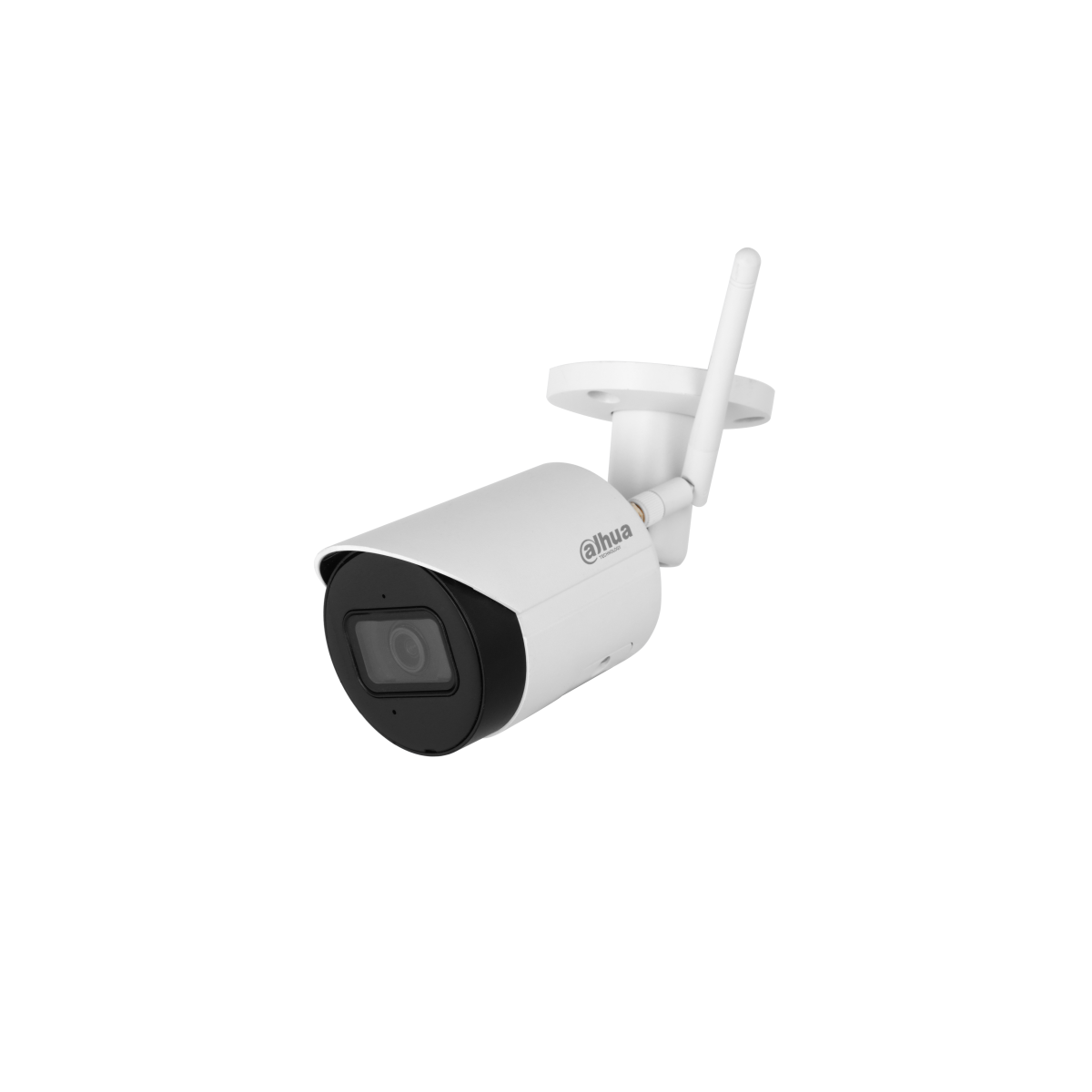

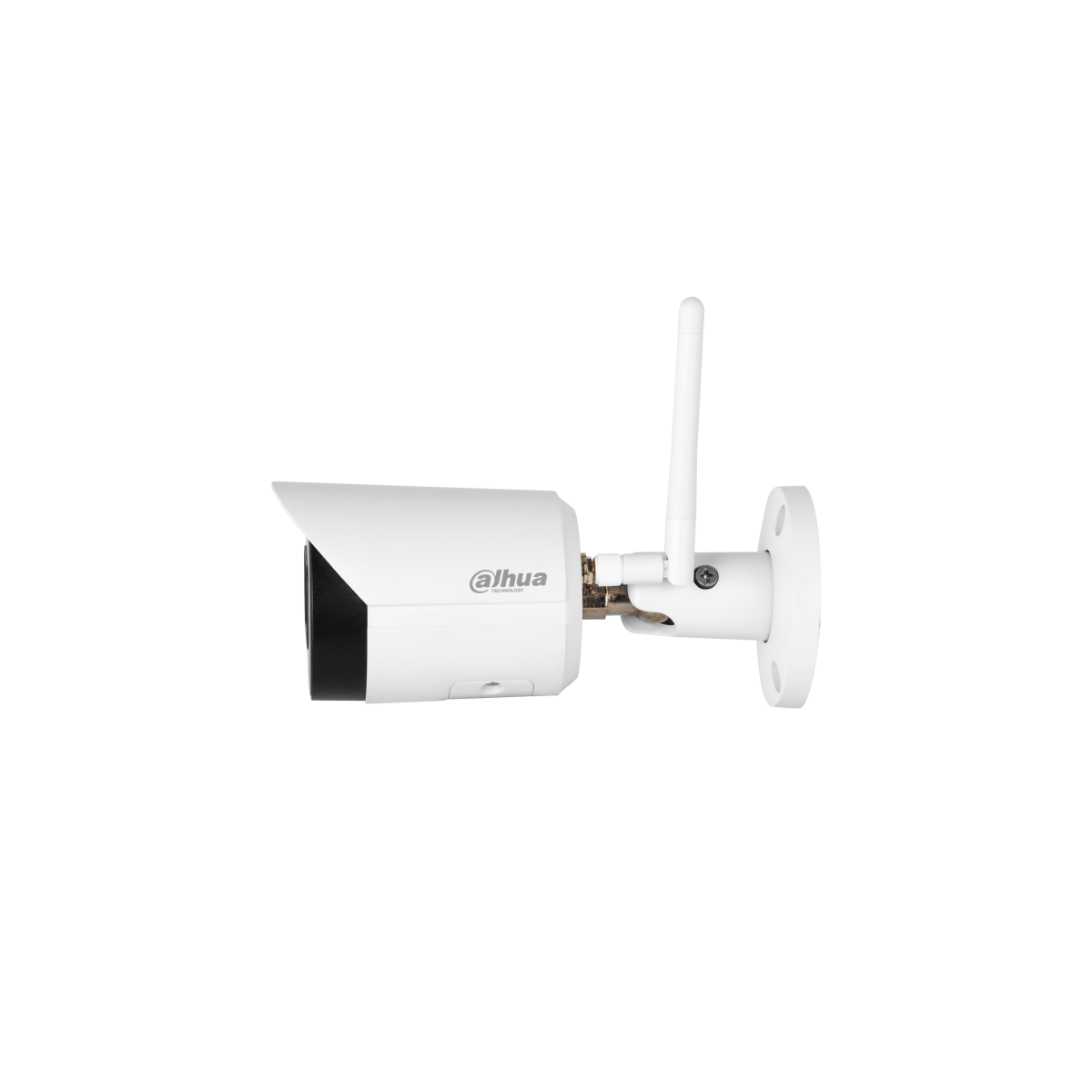

Dahua 4MP Bullet (Silindir) Wi-Fi Dış Ortam Güvenlik Kamerası

1/3" CMOS

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

0.03 Lux@F2.0 (Color, 30 IRE)

0.003 Lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

>56 dB

30 m (98.43 ft) (IR LED)

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

M12

2.8 mm; 3.6 mm

F2.0

2.8 mm:
Horizontal: 90°; Vertical: 50°; Diagonal: 107°
3.6 mm:
Horizontal: 76°; Vertical: 40°; Diagonal: 92°

2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)

Lens

68 m

(223.10 ft)

27.2 m (89.24 ft)

13.6 m (44.62 ft)

6.8 m

(22.31 ft)

3.6 mm

85.2 m (279.53 ft)

34.1 m (111.88 ft)

17.0 m (55.77 ft)

8.5 m

(27.89 ft)

Video

H.264B; H.264; H.264H; H.265

Smart H.265+; Smart H.264+

Main stream:
2560 × 1440 (1–20 fps)
Sub stream:
640 × 480@(1–25 fps)

640 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

CBR/VBR

H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Auto (ICR)/Color/B/W

BLC

WDR

DWDR

Auto; natural; street lamp; outdoor; manual; regional custom

3D NR

OFF/ON (4 areas, rectangular)

Smart Illumination

0°/180°

Alarm

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4~2.4835GHz

Wireless Range

Up to 80 m (The performance varies based on actual environment)

SDK and API

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;

ONVIF (Profile S/Profile G); CGI; P2P

6 (Total bandwidth: 36 M)

Micro SD card (support max. 256 GB, sold separately)

IE
Chrome
Firefox

Smart PSS; DSS; DMSS

iOS; Android

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

12 VDC

Basic: 2 W (12 VDC)
Max. (H.265+IR intensity): 4.1 W (12 VDC)

≤95%

–30 °C to +70 °C (–22 °F to +158 °F)

IP67

Metal

166.2 mm × 70.0 mm × 128.6 mm (6.53" × 2.76" × 5.06")

477.9 g (1.05 lb)

696.5 g (1.50 lb)
