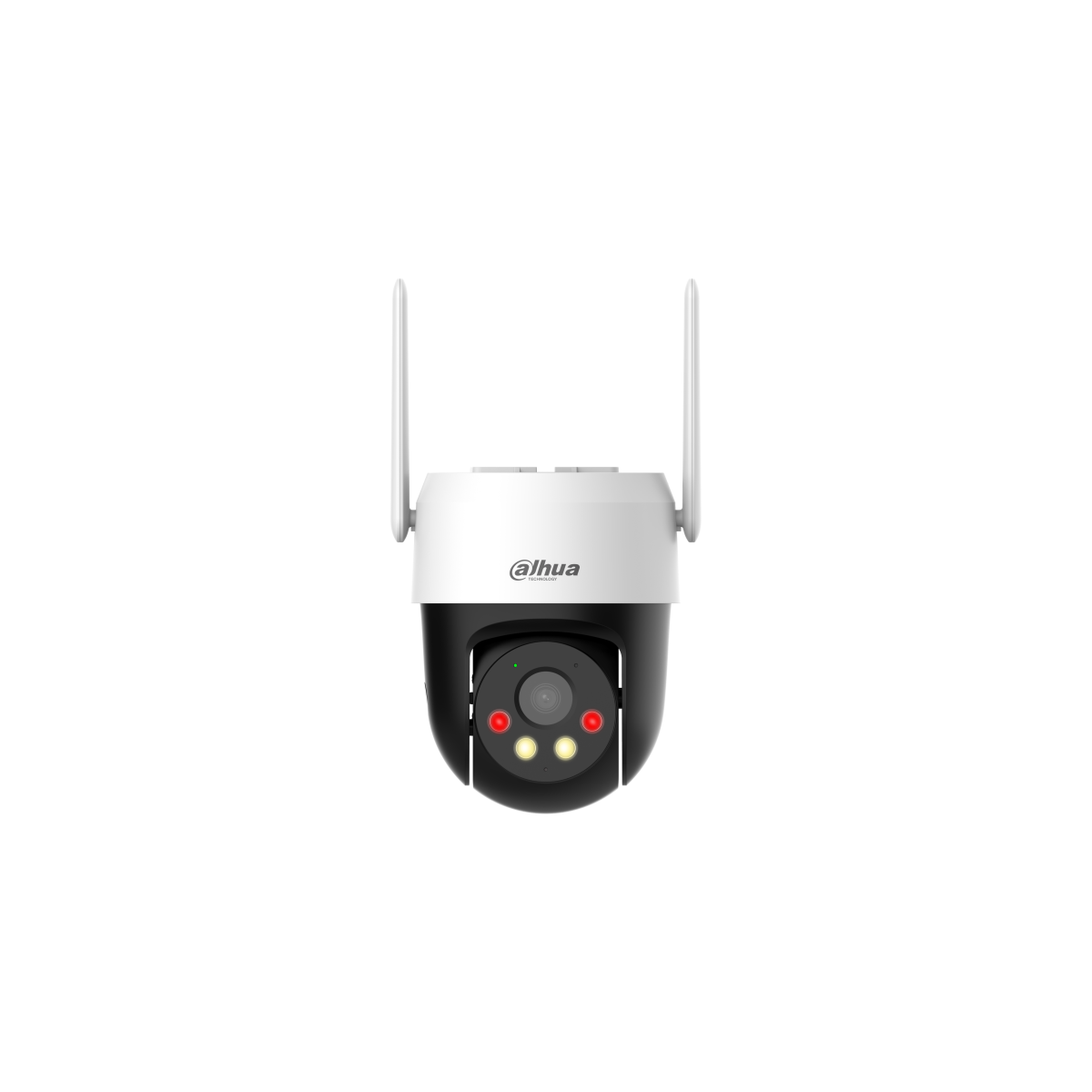

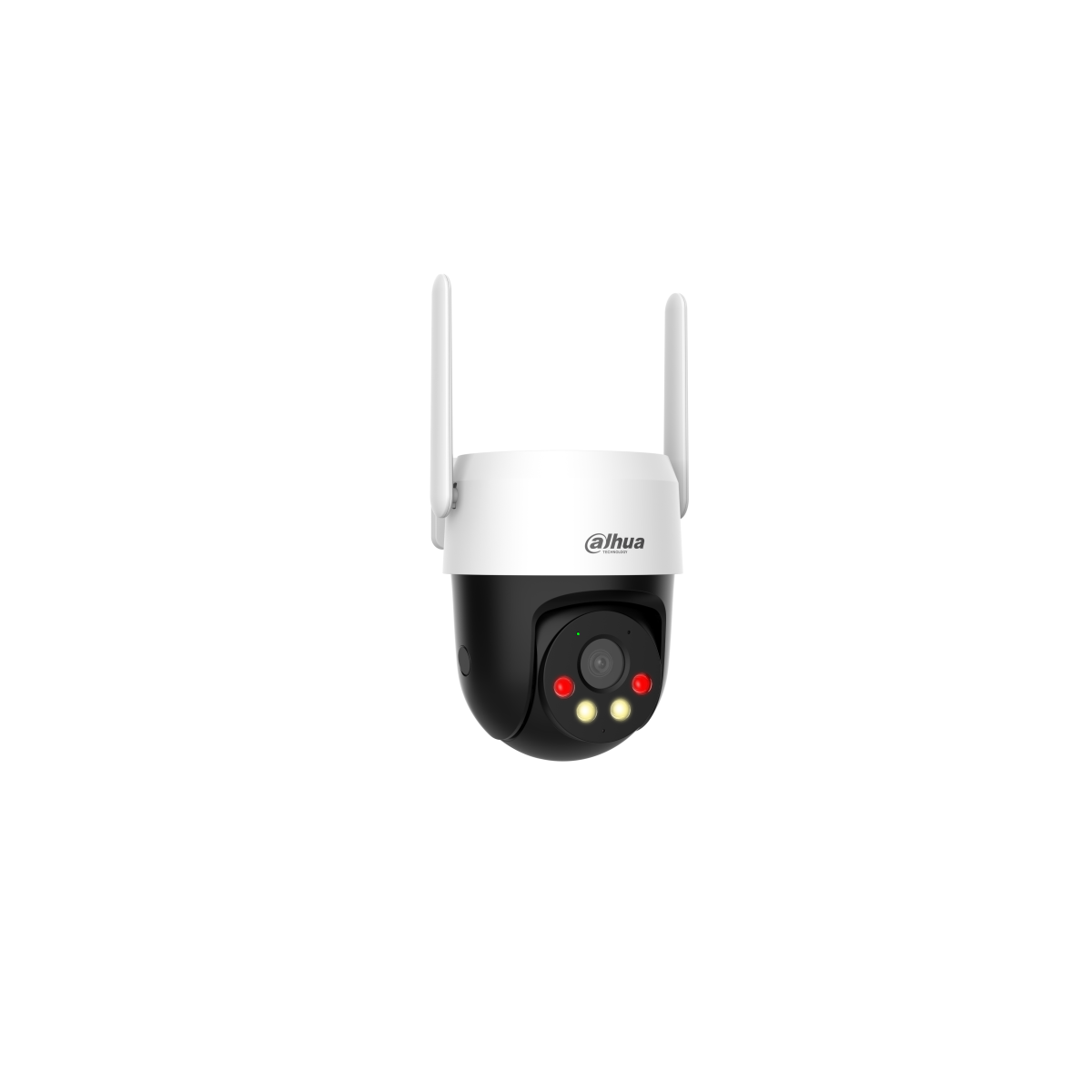

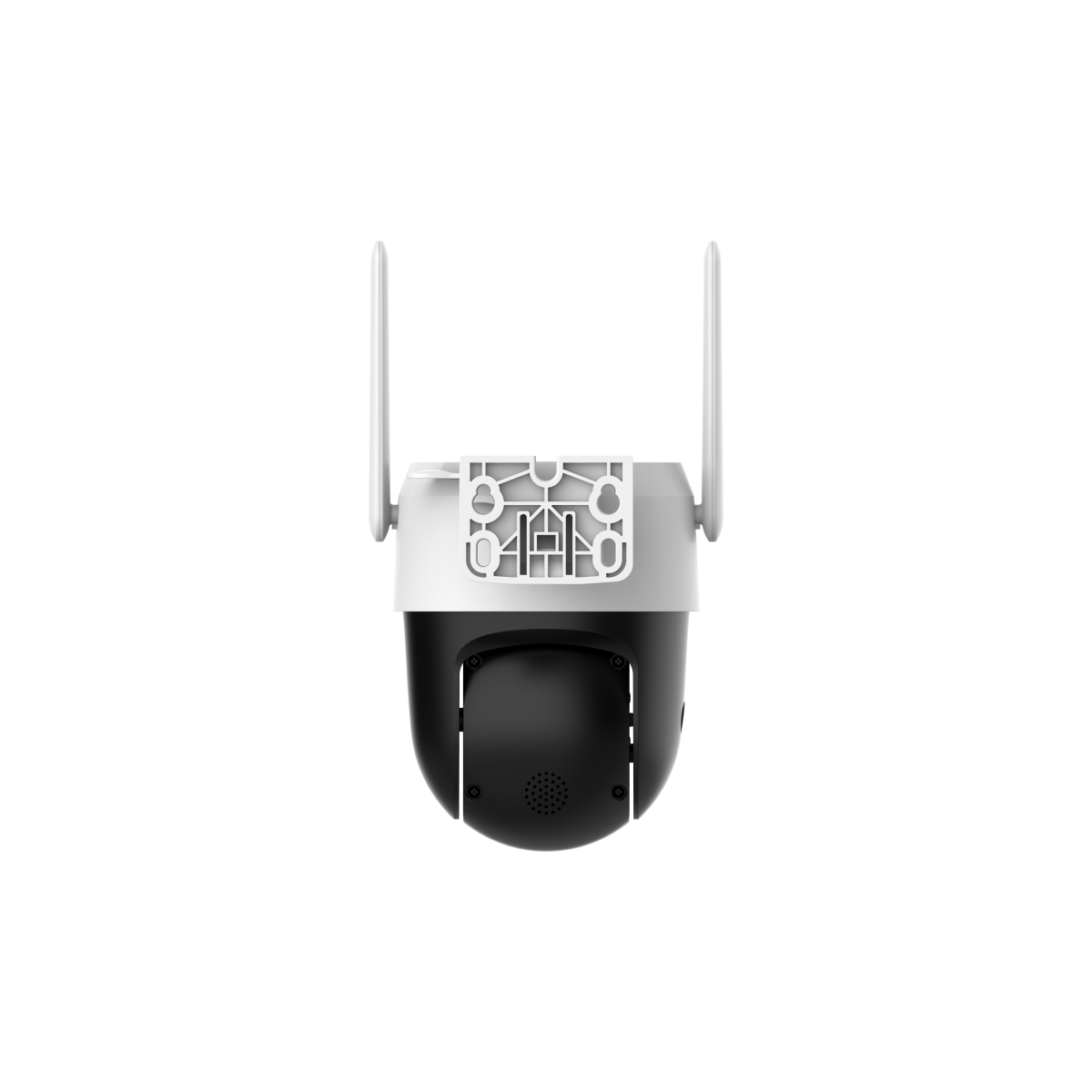

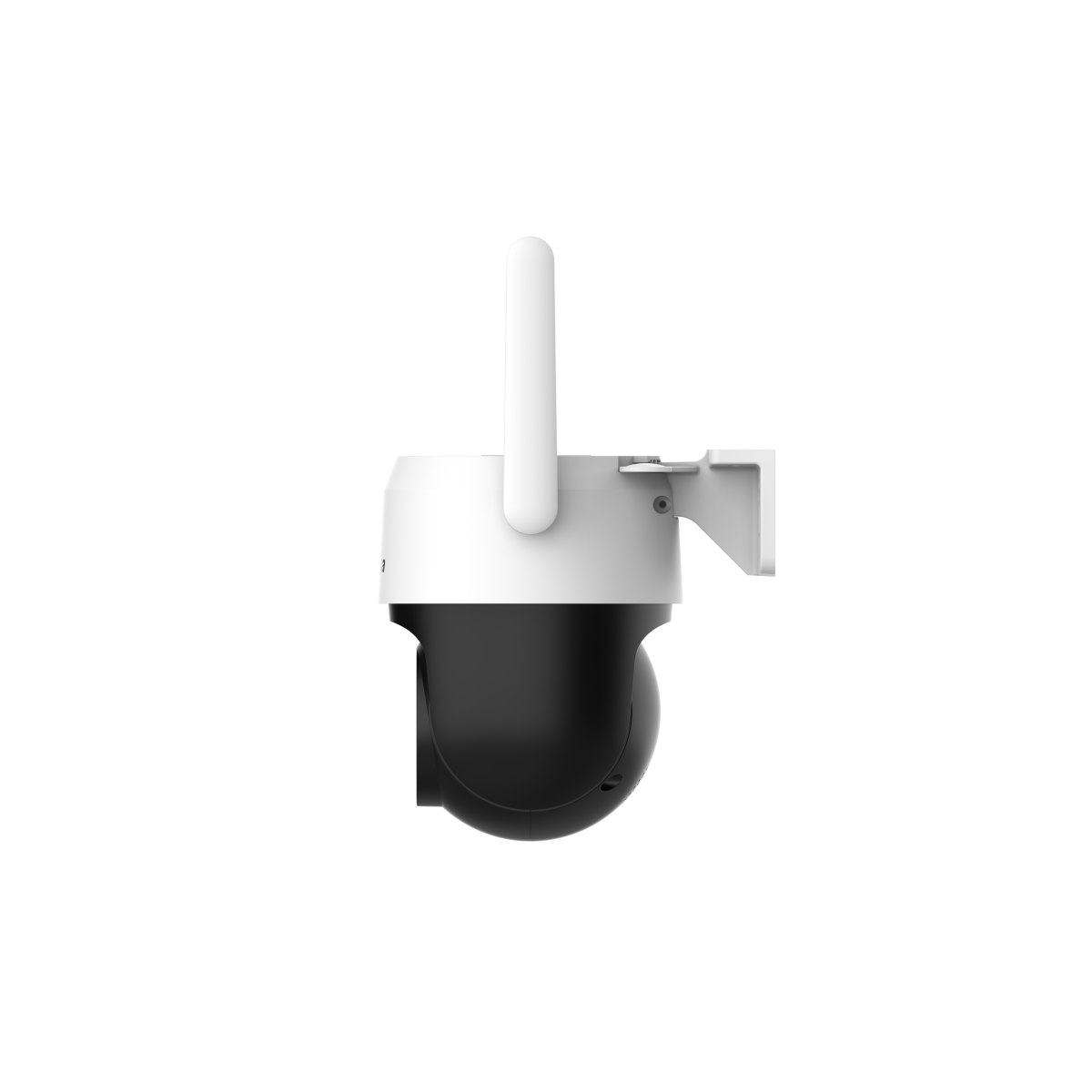

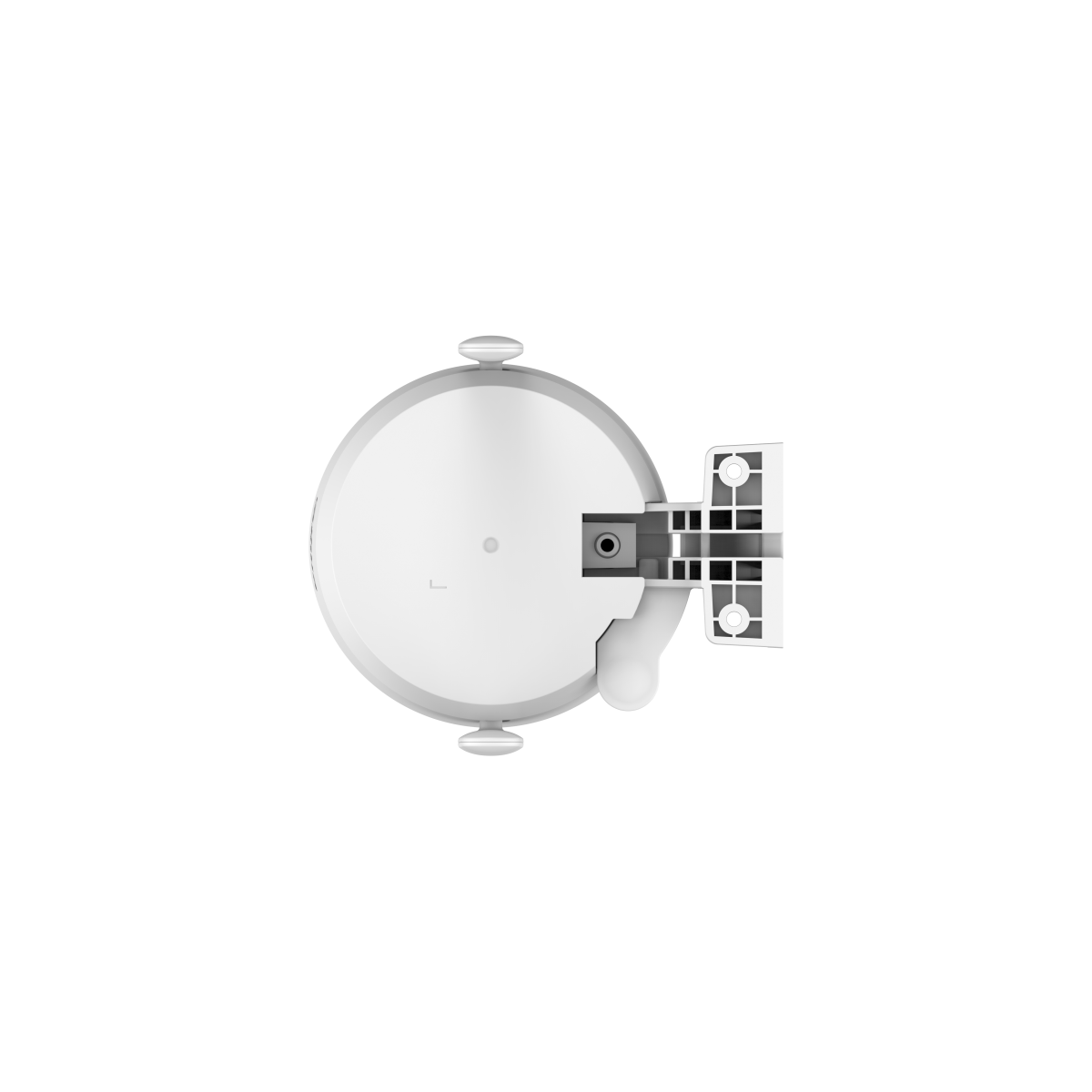

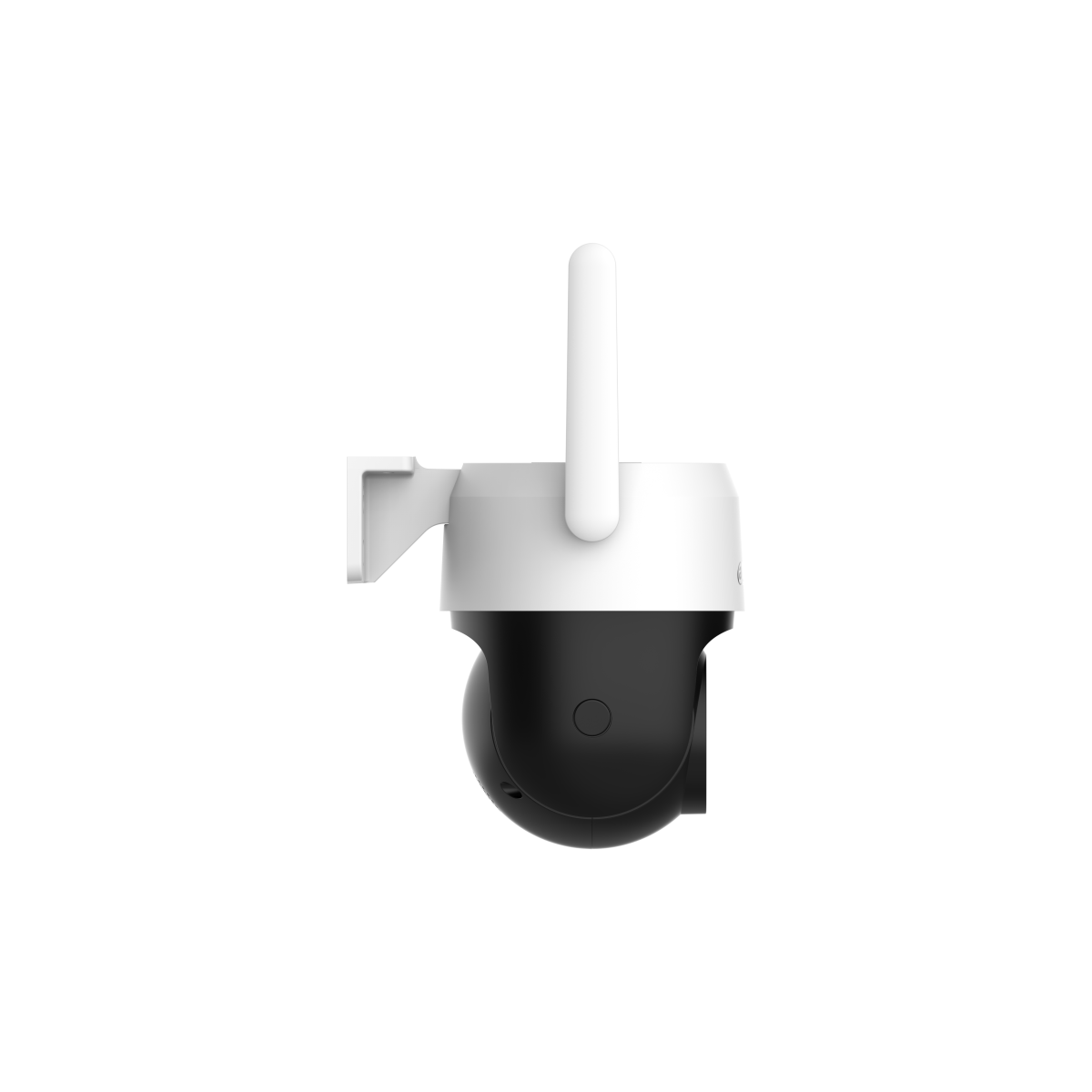

Dahua 5MP Dönen Başlıklı (Pan & Tilt) 4G SIM Kartlı Güvenlik Kamerası

1/2.8" CMOS

2880 (H) × 1620 (V)

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)

1/25 s–1/100,000 s

2 (IR light); 2 (Warm light)

Lens

4.0 mm

F1.6

H: 81.27°; V: 47.73°; D: 94.41°

PTZ

Pan/Tilt Range

"Pan: 0° to 345°
Tilt: 0° to +90°"

IVS

Tripwire and intrusion

Human detection; Auto-tracking

Vehicle Detection

SMD

SMD 3.0

Video

Smart H.265+;H.265;Smart H.264+;
H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Main stream: 5M/1080p/720p/640 × 360@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

H264: 64 - 8192 kbps H265: 25 - 6400 kbps

Auto (ICR); Color/B/W

WDR

DWDR

180°

PCM; G.711a; G.711Mu; G.726

EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

Max. Transmission Power

4G:Power class3:23dBm±2dB

Micro SD card (support max. 256 GB);

DMSS

iOS; Android

CE

12 VDC, 1 A ± 10%

Basic: 3 W
Max: 9 W (illuminator + PTZ)

–30 °C to +55 °C (–22 °F to +131 °F)

≤95%

TVS 2000 V lightning proof;
surge protection;
voltage transient protection;
Waterproof and Dustproof

Reset button

140.5 mm × Φ111.0 mm (5.53" × Φ4.37")

0.5 kg (1.10 lb)
