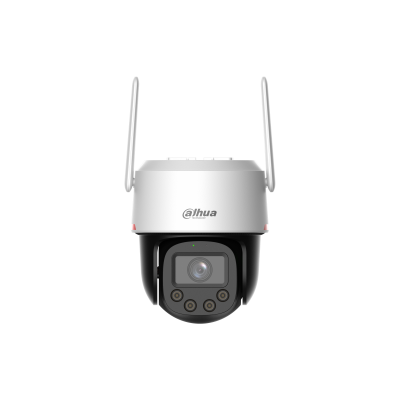

Dahua 4MP Dönen Başlıklı (Pan & Tilt) 4G SIM Kartlı Güvenlik Kamerası

1/1.8" CMOS

2560 (H) × 1440 (V)

1 s–1/30,000 s

0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (illuminator on)

30 m (164.04 ft) (Warm light)

4 (warm light)

Lens

4 mm

F1.0

H: 97°; V: 52°; D: 114°

PTZ

Pan/Tilt Range

Pan: 0° to 345°; Tilt: 0° to +90°

Vehicle Detection

Video

Smart H.265+; H.264M; H.264H; Smart H.264+; H.265; H.264B; MJPEG

Main stream: 4M/1080p/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

H264: 3,072 kbps–15,104 kbps
H265: 1,280 kbps–9,216 kbps

Color/B/W

WDR

DWDR

180°

PCM, G.711A, G.711Mu

RJ-45 (10/100 Base-T)

EAU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 TDD:B38/40/41
EUR LTE-FDD: B1/B3/B5/B7/B8/B20/B28 TDD:B38/40/41
LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

Max. Transmission Power

4G: Power class3: 23dBm±2dB

ONVIF (Profile S & Profile G & Profile T); SDK; CGI

Micro SD card (Up to 256 GB); FTP

DSS Pro; 5 Series NVR; DMSS

Android; iOS

CE

12 VDC,1 A ± 10% (included)

Basic: 3 W Max: 7.5 W (illuminator + PTZ)

–30 °C to +55 °C (–22 °F to +131 °F)

≤95%

TVS 2000 V lightning proof; Waterproof and Dustproof; surge protection; voltage transient protection

153.5 mm × Φ129.3 mm (6.04" × Φ5.09")

0.66 kg (1.46 lb)
