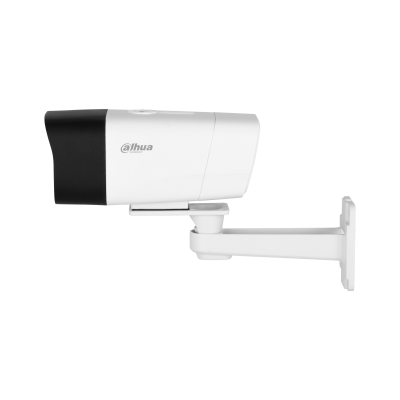

Dahua 2MP Bullet (Silindir) 4G SIM Kartlı Güvenlik Kamerası

1/2.8" CMOS

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

0.005 lux@F1.6(Color,30 IRE)
0.0005 lux@F1.6(B/W,30 IRE)
0 lux (Illuminator on)

> 56 dB

2 (IR LED); 2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

M12

2.8 mm;3.6 mm

F1.6

2.8 mm: H: 108°; V: 58°; D: 127°
3.6 mm: H: 82°; V: 42°; D: 99°

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3m (4.27 ft)

Lens

44.2 m

(140.01 ft)

16.9 m

(55.45 ft)

8.4 m

(27.56 ft)

4.2 m

(13.78 ft)

3.6 mm

59.6 m

(195.54 ft)

23.8 m

(78.09 ft)

11.9 m

(39.04 ft)

6.0 m

(19.69 ft)

Video

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart H.265+; Smart H.264+

Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

CBR/VBR

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

BLC

HLC

WDR

DWDR

Auto; natural; street lamp; outdoor; manual; regional custom

3D NR

OFF/ON (4 areas, rectangular)

Smart Illumination

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

4 areas

G.711a; G.711Mu; PCM; G.726

Alarm

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; voltage detection; SMD (human); security exception

RJ-45 (10/100 Base-T)

Carrier Network

4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28

TDD-LTE: B38/B40/B41

Power class3: 23dBm ±2.7dB

SDK and API

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

ONVIF (Profile S; Profile G; Profile T); CGI

20 (Total bandwidth: 48 M)

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

IE: IE7; Chrome; Firefox

SmartPSS Lite; DSS; DMSS

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

12 VDC

Basic: 2.3 W (12 VDC)
Max. (H.265 + max. resolution + main stream + WDR + warm light intensity +IVS+4G): 7 W (12 VDC)

≤95%

IP67

Metal + plastic

192.3 mm × 88 mm × 87.3 mm (7.56" × 3.46" × 3.43") (L × W × H)

0.58 kg (1.28 lb)

1.06 kg (2.33 lb)
