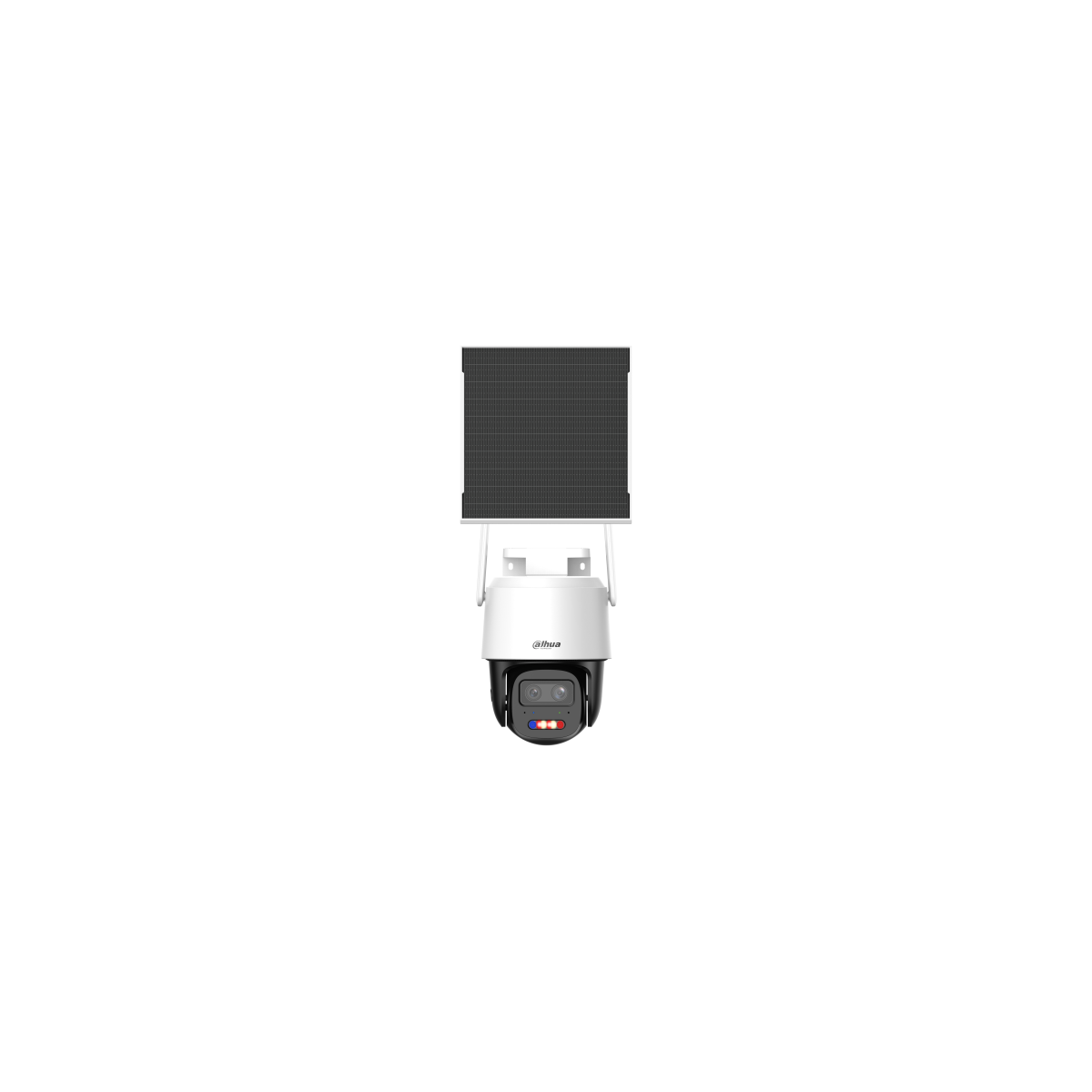

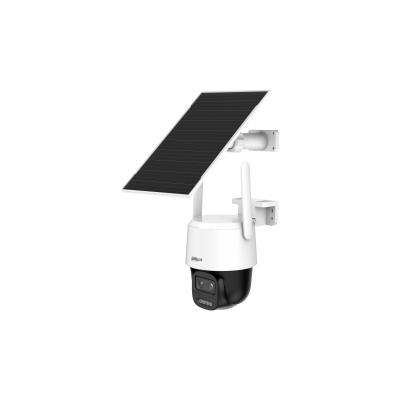

Dahua Pilli/Güneş Panelli 4G SIM Kartlı Güvenlik Kamerası

1/3" CMOS

2304 (H) × 1296 (V)

Up to 30 m (98.43 ft) (IR)
Up to 20 m (65.62 ft) (Warm Light)

2 (Multi-core (IR + warm) light); 1 pair (Red and blue alarm light)

Pan: 0° to 350°
Tilt: 0° to 90°

2.8 mm; 6 mm

F1.6

H: 49°–96°; V: 27°–54°; D: 58°–112°

Vehicle Detection

H.265

Main stream: 2304 × 1296@(1–15 fps)
*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

H.265: 12 kbps–4096 kbps

WDR

Yes, built-in dual Mic

G.711a; G.711Mu; PCM; AAC-LC

RJ-45 (10/100 Base-T)

Carrier Network System

4G(-EAU/-EUR)
FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66
TDD-LTE: B38/B40/B41
Power class3: 23 dBm±2.7 Db
Applicable regions: Latin America;

4G(-LA)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
Power class3: 23 dBm±2.7 dB
Applicable regions: Europe

Micro SD card (supports max 512 GB)

DMSS

USB (5 VDC±5%, 2 A)

Performance Mode: 1520 mW (light off)/1940 mW ((IR light on)/4240mW(light on+PT+Warning light on+Speak on)

AOV Mode (0.5 fps): 125 mW (light off)/168 mW ((IR light on)

Ultra Power Saving Mode: 59 mW

–20 °C to +50 °C (–4 °F to +122 °F)

IP66

Reset Button; Power Button

172.7 mm × 141.2 mm × 274 mm (6.8" × 5.56" × 10.79") (L × W × H)

Battery

Battery Capacity

10000 mAh / 36 Wh

Charge (-EUR): –20 °C to +50 °C (–4 °F to +122 °F)
Charge: 0 °C to +50 °C (+32 °F to +122 °F)
Discharge: –20 °C to +60 °C (–4 °F to +140 °F)

Solar Module

Max. Power

8 W

Cell Type

Monocrystalline silicon
